Tanh

Function Tanh

The Tanh function computes a hyperbolic tangent.

Performance:

	Default processor	Intel® Pentium® III processor	Intel® Pentium® 4 processor	Intel® Pentium® 4 processor with Streaming SIMD Extensions 3 (SSE3)	Intel® Itanium® 2 processor
vsTanh (HA version)	52.35	52.36	21.82	27.46	6.68
vdTanh (HA version)	94.87	96.26	55.94	67.30	10.36

Notes:
1) Units - CPE (Clocks per Element)
2) Performance was measured on "working" interval (double precision: [-1,1]; single precision: [-1,1] )
3) Data - vectors of 1000 elements with random generated numbers
4) "Default" means X87 code for all IA-32 processors
5) Performance of "default" version was measured on Intel® Pentium® III processor

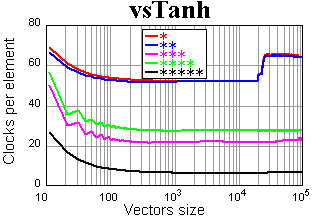

Notes:
1) *           X87 code for all processors
2) **         Intel® Pentium® III processor
3) ***       Intel® Pentium® 4 processor
4) ****     Intel® Pentium® 4 processor with Streaming SIMD Extensions 3 (SSE3)
5) ***** Intel® Itanium® 2 processor
6) Logarithmic scale is used for "Vectors Size" axis

Maximal observed error for the whole function domain:

	Default processor	Pentium III processor	Pentium 4 processor	Pentium 4 processor with SSE3	Itanium 2 processor
vsTanh (HA version)	0.7611	0.7611	0.5051	0.5051	0.5061
vdTanh (HA version)	0.8777	0.8777	0.5293	0.7442	0.5012

Notes:
1) Units - ULP (Units in The Last Place)

Special values:

Function	Input Argument	Result	Default processor	Pentium III processor	Pentium 4 processor	Pentium 4 processor with SSE3	Itanium 2 processor
vsTanh/vdTanh (HA version)	0	0	+	+	+	+	+
	+/- Inf	+/- 1	+	+	+	+	+
	NaN (Both QNaN and SNaN)	NaN	+	+	+	+	+
